Fortis Diesel A tank for safe fuel storage with a dispenser

A tank for safe fuel storage with a dispenser made of certified material which is resistant to weather and UV rays. The tank is protected against damage by its double-skinned structure. It comes equipped with a dispensing system from a recognised company and high quality filtering components. The white internal tank allows for a visual inspection of fuel purity.

LEARN MORE ABOUT THE TANK

K600 counter

flow meter with the accuracy of 0.5% for diesel oil, heating oil and biofuels; can be calibrated

5000 L CAPACITY

largest capacity tank in the Fortis family, perfect for big companies

PUMP 70 L/MIN

strong pump with the capacity of 70 litres per minute
- metal filter with water separator – protects tank content from contamination

DISPENSING HOSE 6 M 1”

long hose enabling convenient filling

A60 AUTOMATIC NOZZLE

an automatic dispensing nozzle ensuring flow capacity of up to 70 l/min with a 3-step nozzle lock enabling user-free filling

Apollo Smart

electronic level indicator

FILL POINT CABINET LIGHTING

ease of operation and safety after dusk

ELECTRONIC OVERFILL SENSOR

guarantees that fuel will not spill from the tank

R-BOX SWITCHING STATION

a compatible switching station supplying power to the fittings and lighting of the tank

  • dispensing unit with a maximum capacity of 72 l/min, 230 V power supply
  • fuel filter mounted on the suction pipe
  • flow meter with a calibration option
  • lockable fill point cabinet secured with two locks
  • wireless fuel level sensor connected to the inter-skin space monitoring system
  • dispensing hose 6 with an automatic nozzle which is cut off when the vehicle tank is full
  • closed upper cover of the tank protects against unauthorised access
  • 16″ service hatch in the inner skin enables thorough periodic cleaning of the tank
  • tank vent is located in the filling cover
  • fill point cabinet lighting (except FT2000 tanks)
  • reel with a 10 and 14 m dispensing hose
  • glass filter with water separator
  • filling line with 2” hose and a quick release coupling to cisterns in the fill point cabinet

SELECT TANK SIZE

Fortis Tank 1000

Small capacity, double-skinned richly equipped tank.

CapacityDiameterHeight
1000 l155 cm115 cm

Fortis Tank 1500

Small capacity, double-skinned richly equipped tank.

CapacityDiameterHeight
1500 l155 cm145 cm

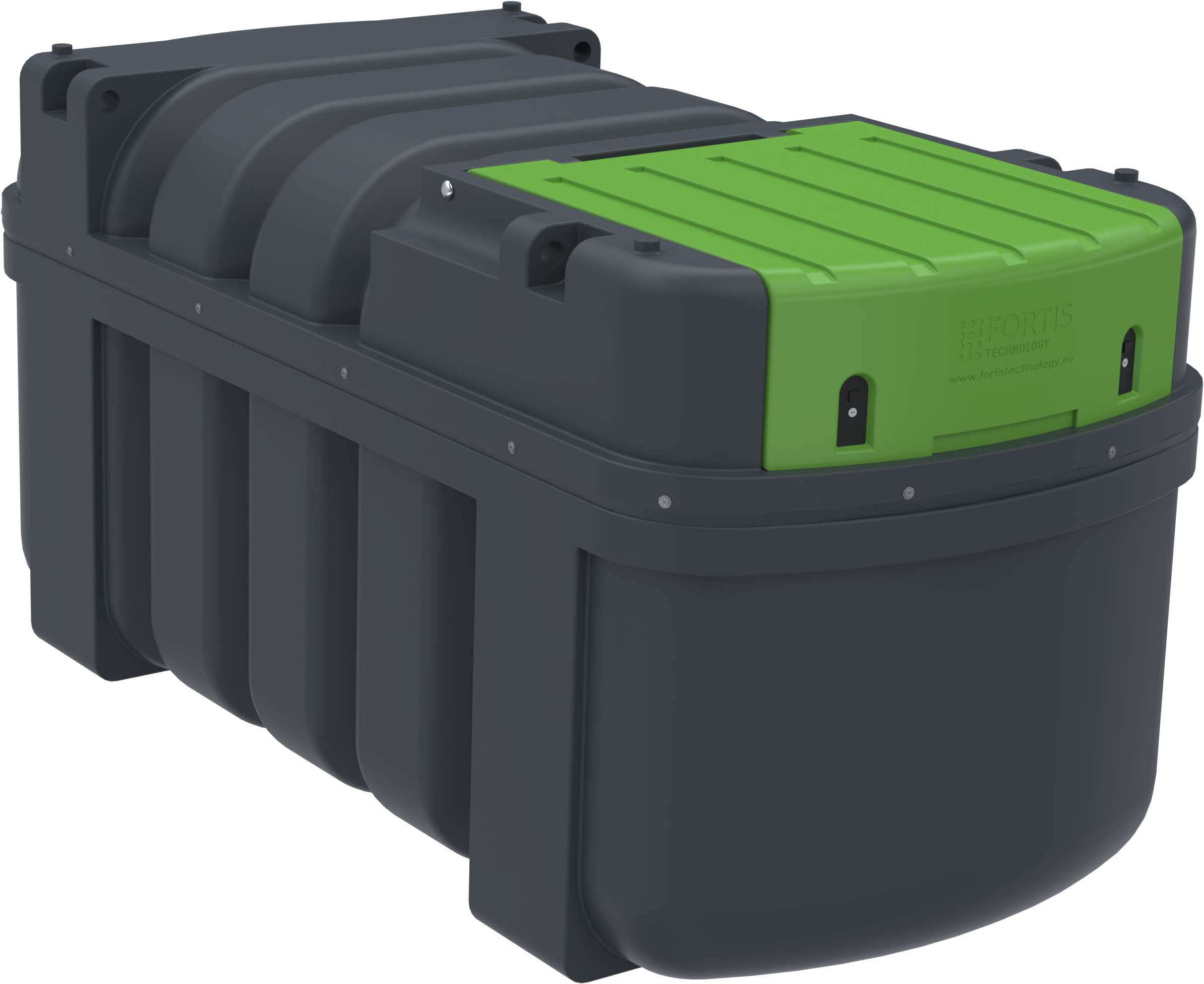

Fortis Tank 2000

Compact double-skinned tank with basic fittings.

CapacityWidthHeightLength
2000 l122 cm130 cm260 cm

Fortis Tank 2500

Compact double-skinned tank with basic fittings.

CapacityWidthHeightLength
2500 l122 cm150 cm260 cm

Fortis X-Tank 2500

Customizable tank series for your needs.

CapacityWidthHeightLength
2500 l180 cm200 cm230 cm

Fortis Tank 3000

The tank is equipped with a large fill point cabinet for the greater convenience. Perfect for small agricultural holdings.

CapacityWidthHeightLength
3000 l210 cm210 cm265 cm

Fortis Tank 5000

Equipped with a large fill point cabinet for the greater convenience.

CapacityWidthHeightLength
5000 l238 cm210 cm295 cm

Fortis X-Tank 5000

Customizable tank series for your needs.

CapacityWidthHeightLength
5000 l234 cm210 cm275 cm

Fortis Tank 9999

Largest capacity in the Fortis Tank family. Equipped with a large fill point cabinet for the greater convenience.

CapacityWidthHeightLength
9999 l245 cm275 cm340 cm

Fortis Tank 1500 BS

Double-skinned, richly equipped tank without a fill point cabinet.

CapacityDiameterHeight
1500 l155 cm145 cm

Fortis Tank 2000 BS

Compact 2000 l tank without a fill point cabinet.

CapacityWidthHeightLength
2000 l122 cm130 cm260 cm

Fortis Tank 3000 BS

Tank without a fill point cabinet. Perfect for small agricultural holdings.

CapacityWidthHeightLength
3000 l210 cm210 cm240 cm

Fortis Tank 5000 BS

Large tank without a fill point cabinet.

CapacityWidthHeightLength
5000 l238 cm203 cm246 cm

AVAILABLE DISTRIBUTION SYSTEMS

Learn more about dispensing systems for fuels and other consumable fluids.

MC System

The most basic system which controls the amount of the fluid drawn and identifies persons and vehicles authorised to take it. Can manage from 50 to 120 users depending on the version.
System functions:

  • precise fuel dosing;
  • entering vehicle registration numbers and mileage;
  • generating reports on the quantity of fuel taken over a specific period by a given vehicle and driver;
  • logging with a chip;
  • measurement accuracy up to 0.5 %;
  • transferring data from the dispenser on a special data carrier or wirelessly through RS-485 communication.
YOUR BENEFITS
  • controlling fuel uptake and consumption;
  • optimising costs of fuel and consumable fluids consumption;
  • monitoring the work of drivers and vehicles;
  • ease of operation.

GEEK System

Double identification management system with data transmission through the GSM network. The terminal controls all processes related to the diesel oil tank, dispenser and vehicle filling (including fuel temperature).
System functions:

  • two-step logging process;
  • records all the data related to filling: date, time, name of the person taking fuel, number of the vehicle or machine which was filled as well as counter reading or man-hour;
  • automatically calculates average consumption and informs the user when standards are exceeded;
  • can be integrated with a very accurate probe measuring the fuel level;
  • takes photographs before and after filling;
  • filling must be authorised by an RFID card (otherwise it is not possible).
YOUR BENEFITS
  • full monitoring of processes related to the uptake and consumption of fuel and consumable fluids;
  • fuel tank which is fully tight;
  • optimising the costs of fuel consumptions as well as the work of drivers and machines;
  • supervised and secured process of fuel dispensing.

GIR System

GIR System - a modern and very professional double-identification system which can manage many fluids simultaneously. Perfect for oil mains.

System functions:

  • controls calibrated dispensers;
  • manages the dispensing of fuels and other fluids as well as the vehicle fleet;
  • software is available from any computer via the Internet;
  • transfer of data from the dispenser through GPRS, Wi-Fi, LAN and RS-485;
  • identifies up to 15,000 drivers and 15,000 vehicles;
  • records the date and time of filling, mileage counter and the selected type of fuel;
  • one terminal operates up to 16 pumps;
  • can be integrated with different types of measurement systems;
  • real-time communication between terminals and servers through LAN or GSM networks;
  • fast and efficient search engine and report generator;
  • e-mail notification alarms;
  • option to control fuel dosing, automotive oils, carwash and electric cars charging;
  • grants individual user rights;
  • storage capacity of up to 2500 transactions;
  • option to program periodical surveys etc.;
  • vandal proof keyboard and sturdy casing.
YOUR BENEFITS
  • on-going monitoring of stock levels and fuel consumption;
  • flexibility in meeting customer needs;
  • optimising costs - long service life and control of consumable fluids consumption;
  • improved company effectiveness;
  • better efficiency on the market.

BENEFITS FOR YOUR COMPANY

1.
Option to buy fuel at wholesale prices
2.
Quick return on investment
3.
Buffer storage used during dynamic price fluctuations
4.
Your own fuel station
5.
Better supervision of fuel dispensed to workers
